| Function: | Aluminum Window Profile CNC Cutting | Rotating Rate: | 3100r/min |
|---|---|---|---|
| Blade Size: | D=500mm | Cutting Scale: | 135x300mm |
| Cutting Length: | 400-4200mm | Cutting Angle: | 45, -45, 90 Degree |
| Input Power: | 4.4Kw | Type: | Double Mitre Saw |
| High Light: | aluminium profile cutting machine,aluminium windows cutting machine |
||

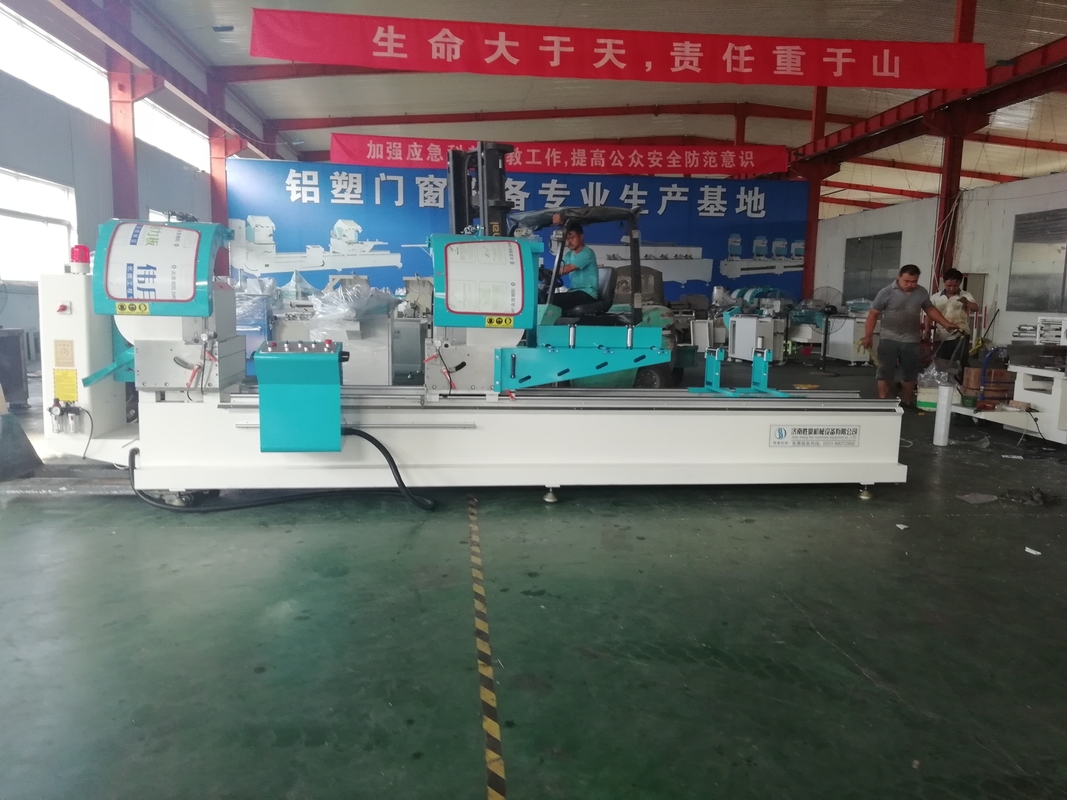

1 .used for Aluminum window door profile high accurate Cutting
2. Imported Linear guide pairs for feeding system , high accurate and stable
3.Right head move by ball-screw pairs .make sure driving high accurate ,positioning accurate ,working stable .
4.cutting angle change Automatic between ±45° and 90°.
5. Imported carbide saw blade for a high quality cutting and long service life. High precision spindle , saw blade rotating stable
6. Imported linear bearing system make sure working stable.
7. Spraying cooling system, make sure carbide saw blade long service life .
8. Pneumatic -hydraulic damp device ensured the saw blade stable feeding and working.
9. Automatic Safety system of shield can ensure the safe operation .
| Voltage | 380V/50HZ | |
| Power | 4.4KW | |
| Working parameters | Saw size | D=500mm d=30mm |
| Rotation rate | 2800r/min | |
| Air pressure | 0.5-0.8MPa | |
| Cutting scale | HxWxL (mm) | 135x300x(400-4200) |
1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;
2, Saw blade rotate smoothly due to high accuracy main spindle;
3, The interface adopt the color touching display,which is briefness and intuitionistic;
4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;
5, 45°and 90°cutting is available;
