High Precision Industrial Glass Cutter Machine , Round Glass Cutting Machine

China High Precision Industrial Glass Cutter Machine , Round Glass Cutting Machine supplier
High Precision Industrial Glass Cutter Machine , Round Glass Cutting Machine supplier High Precision Industrial Glass Cutter Machine , Round Glass Cutting Machine supplier

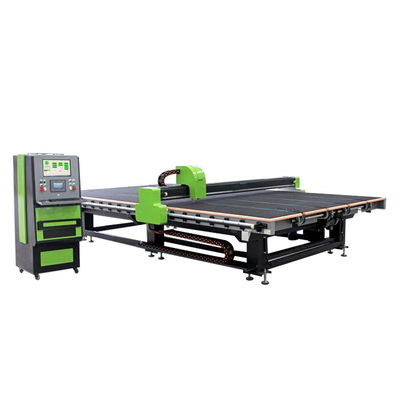

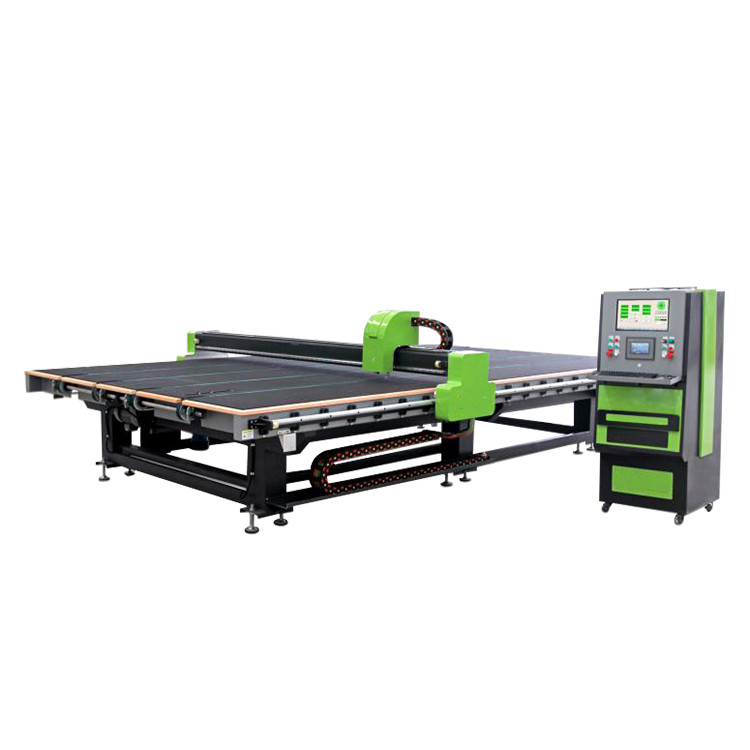

Large Image :  High Precision Industrial Glass Cutter Machine , Round Glass Cutting Machine

Product Details:

Place of Origin: Shandong China
Brand Name: Caretech
Certification: CE ISO
Model Number: CNC4228

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 25 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: Round Shape Glass Cut Glass Thickness: 3-19mm
Cutting Precision: ≤0.2mm/m Glass Size: 4200x2800mm
Controlling System: Galil Software: OPTIMA
Product Name: Automatic Industrial Glass Cutter Machine For Round Shape Glass Cut Servo System: YASKAWA
Diamension: 14000×3700x900mm Cutting Tool: Bohle

Automatic Industrial Glass Cutter Machine for Round Shape Glass Cut


Product Description



Automatic Industrial Glass Cutter adopts US Galil control system to cut glass into any shape and mainly used in construction glass,auto glass,household appliance glass,hollow door and window glass,furniture,kitchen and bathroom glass,solar glass,len glass and other glass cutting process.



Apply the most advanced abroad two-shaft-three-link type i-shaped design, so as to achieve precision stability under long term use and fast operational;applicble to construction curtain walls, Auto Windshield,crafts,furniture,hollow,solar glass,etc.,or set cutting linear or special-shaped glass.



Automatic Industrial Glass Cutter is included with three equipments:glass loading machine ,glass cutting machine ,and pneumatically glass breaking table.Controlled with a commercially PC,all three machine are worked together automatically in high speed and high precision.





Parameters of Care Automatic Industrial Glass Cutter
Power supply   380V 50Hz 3P (or customized)
Total power   16KW
Process glass scale Max glass size 4200×2800mm
Glass thickness 3-19mm
Cutting precision ≤±0.2mm/m
Cutting speed 180m/min
Dimension L×W×H (mm) 14000×3700x900



Details





Products Features


1_03


Advantages


1. USA Galil controlling system
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimazation software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass



Sample&Applicaton


1_09


Our Services


1_13


Packaging & Shipping



1_15
