Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw

China Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw supplier
Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw supplier Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw supplier Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw supplier Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw supplier

Large Image :  Automatic UPVC Window Machine With Digital Display Double Mitre Cutting Saw

Product Details:

Certification: CE ISO
Model Number: LJZ2-450X3700

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: Automatic UPVC Window Cutting Rotating Rate: 2800r/min
Blade Size: D=450mm Cutting Scale: 100x200mm
Cutting Length: 400-3700mm Cutting Angle: 45, -45, 90 Degree
Input Power: 3.55Kw Product: Automatic UPVC Window Machine Digital Display Double Mitre Cutting Saw
High Light:

upvc window welding machine

,

cnc corner cleaning machine

Automatic UPVC Window Machine Digital Display Double Mitre Cutting Saw


Product parameter



1. 90°, inside 45, plastic and aluminum profile. Various angle cutting is available.

2. Right head moving manually on the linear bearing rail. Auto brake device.

3. Micro cutting length adjustment device ensure precision and easy operation.

4. With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.

5. The linear guiding pair ensures steady processing accuracy.

6. Saw blade rotates smoothly due to high accuracy linear bearing.

7. Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder. Optional Hydro-pneumatic feeding cylinder is available.

8. Carbide Saw blade ensure high cutting surface precision.

9. Two hand safety operation



Voltage 380V/50HZ
Power   3.55KW
Working parameters Saw size D=450mm d=30mm
Rotation rate 2800r/min
Air pressure 0.5-0.8MPa
Cutting scale HxWxL (mm) 100x200x(400-3700)

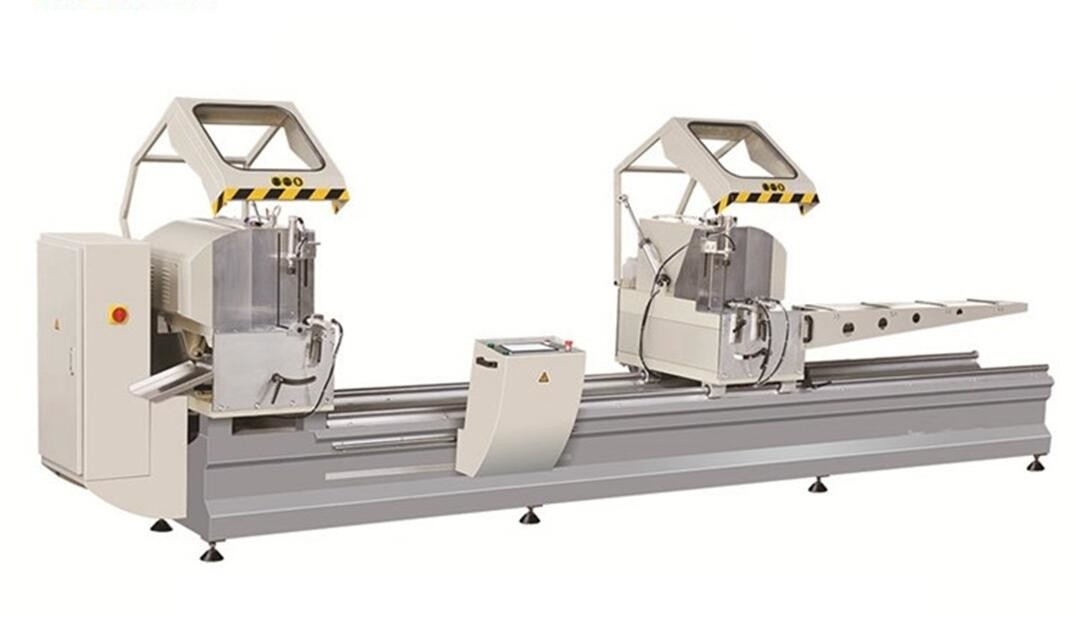

Product Display

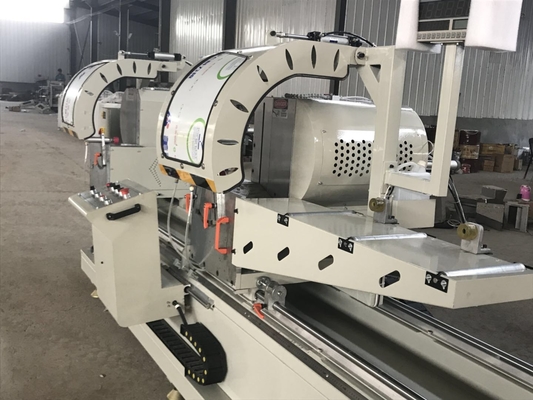

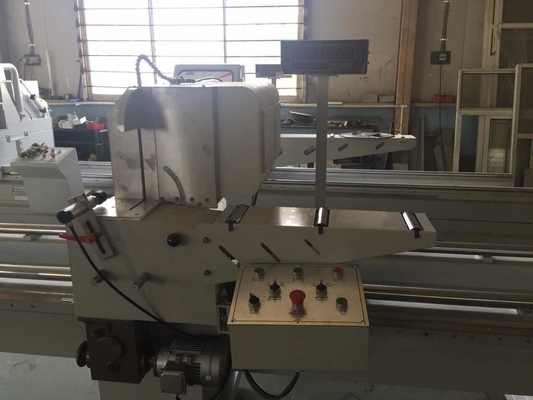

Product detail






Products Features



1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;

2, Saw blade rotate smoothly due to high accuracy main spindle;

3, The interface adopt the color touching display,which is briefness and intuitionistic;

4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;

5, 45°and 90°cutting is available;
