PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale

China PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale supplier
PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale supplier PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale supplier PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale supplier PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale supplier

Large Image :  PVC UPVC Window Welding Machine For Window Corner Assembling 100x120mm Scale

Product Details:

Place of Origin: Shandong China
Brand Name: Caretech
Certification: CE ISO
Model Number: SHZ4-100X4500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: UPVC Window Welding Welding Scale: 100x120mm
Welding Length: 400-4500mm Air Pressure: 0.5-0.8MPa
Total Power: 4.5Kw Product: PVC UPVC Window Welding Machine For Window Corner Assembling

PVC UPVC Window Welding Machine for Window Corner Assembling





Introduction



PVC UPVC window welding machine is used for welding and fabrication of PVC/UPVC window frame. According to various processing capacity and investment, there are single head, double head, triple head and four head welder for choice.



1, Suitable for welding common PVC profile, color coated PVC profile and laminated PVC profile.

2, Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.

3, Double pressing function ensures higher welding strength.

4, The pressure of front and back clamper is adjusted separately, so as to improve the planeness of the welding corner

5, The heads are operated individually, together.

6, No. 2,3,4 head can move horizontally, so that realize various kinds of welding combination.

7, The fourth head can be used for welding variable angle with the special mold and the angle range from 30°~180°.

8, Professional mold configuration, can provide the design for different profiles ensure the welding quality. (optional)

9, Welding seam is about 0.10-0.15mm.

10, single head, double head and triple head welding machine available.



Parameter



Parameters of Care PVC welding machine

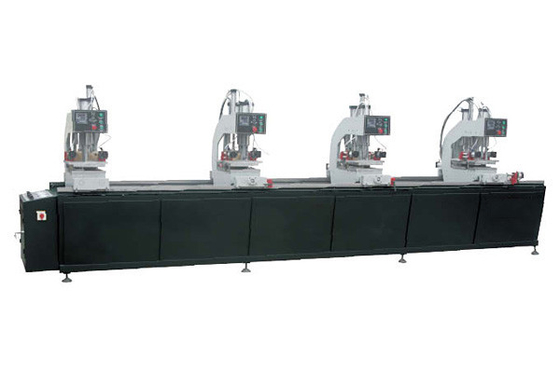

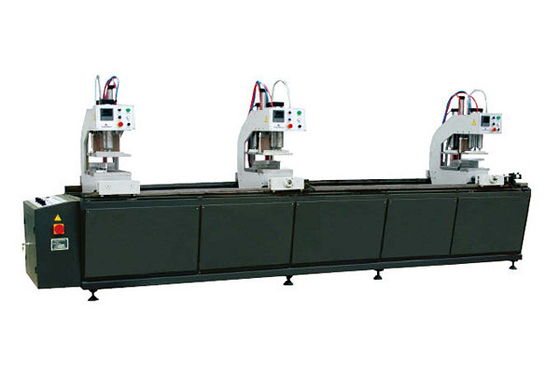

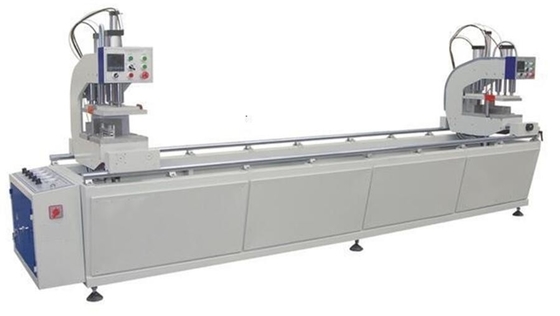

Options single head double head triple head four head
Power supply 380V 50Hz 3P (or customized)
Total power 1.2KW 2.5KW 3.5KW 4.5KW
Air pressure 0.5-0.8MPa
Welding scale (WxHxL) 120x120x1800mm 120x120x3500mm 120x120x3500mm 120x120x4500mm
H=170mm customized
Dimension
L×W×H
960x900x1460mm 4300x900x1650mm 4300x900x1650mm 5300x900x1650mm



Flow chart



2
