Industrial Glass Grinder , Window Glass Glass Beveling Machine 380V/50Hz

China Industrial Glass Grinder , Window Glass Glass Beveling Machine 380V/50Hz supplier
Industrial Glass Grinder , Window Glass Glass Beveling Machine 380V/50Hz supplier Industrial Glass Grinder , Window Glass Glass Beveling Machine 380V/50Hz supplier

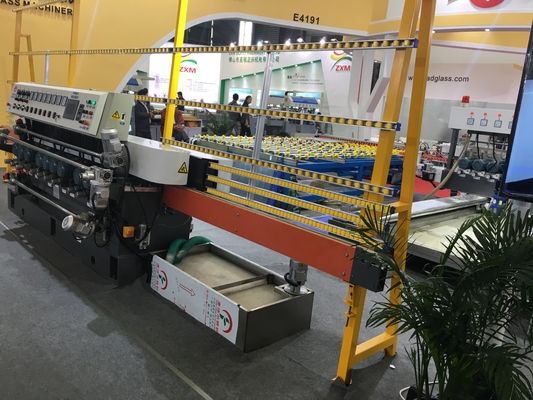

Large Image :  Industrial Glass Grinder , Window Glass Glass Beveling Machine 380V/50Hz

Product Details:

Place of Origin: Shandong China
Brand Name: Caretech
Certification: CE ISO
Model Number: CAEP04

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 15 days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Function: Window Glass Processing Max Edging Size: 3000x3000mm
Min Edging Size: 80x80mm Glass Thickness: 3-25mm
Grinding Tool: Diamond Wheel Grinding Speed: 7m/min
Producut: Industrial Glass Edge Grinding Machine For Window Glass Processing Polisher Grinding Down: 1.5mm

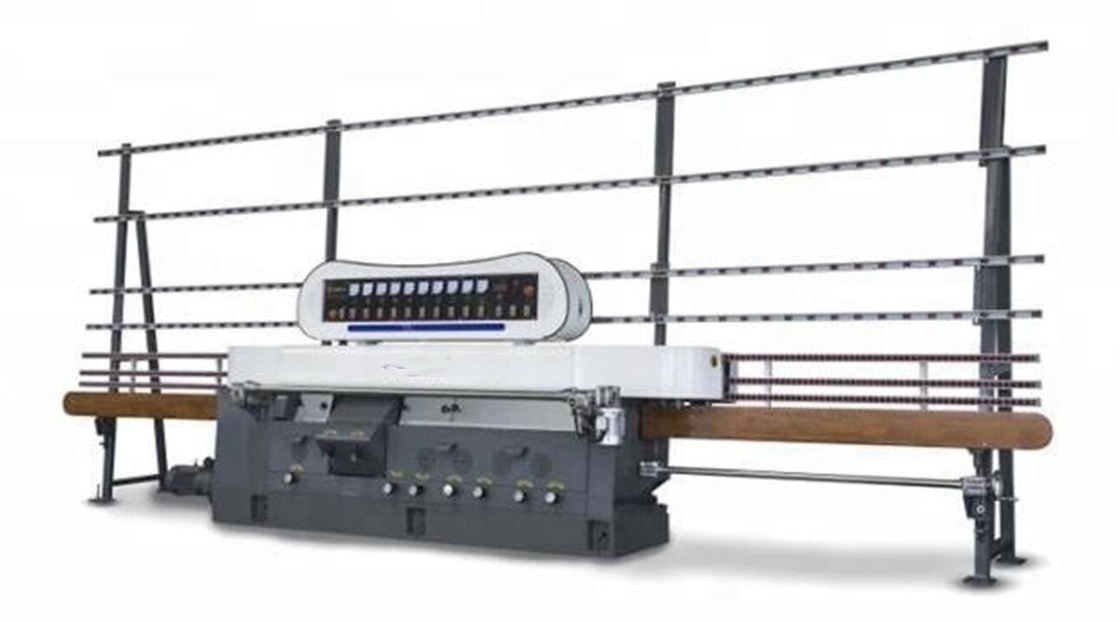

Industrial Glass Edge Grinding Machine for Window Glass Processing Polisher

Product Description



This machine is suitable for edge and corner grinding of plate glass of different size and thickness,finishing coarse grinding,fine grinding and polishing at one time.The flat surface after polishing is close to bright and clean degree of glass matrix.When adjusting different processing thickness (able to refer to data display instrument on front-axle beam),former chamfering grinding head can move simultaneously along with the front-axle beam.It possesses the advantages of advanced structure,high working precision,easy operation and capacity of continuous processing for the same thickness,and thereby is necessary equipment for glass deep processing.



Paramenters



Overal dimension 7000x1020x2350mm
Working table height 750mm
Voltage 380V/50Hz
Power 19.45KW
Weight 3000kg
Wheel number nine
Grinding down height 1.5mm
Parallel tolerance ±0.2mm/m
Diagonal tolerance ±0.3mm/m
Speed 0.5-7.0m/min
Max glass size 3000x3000mm
Min glass size 80x80mm
Min glass thickness 3mm
Max glass thickness 25mm
Edging angle 45°



Function



1. Suitable for grinding straight edge of different size and thickness flat glass.

2. The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.

3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission.

4. Adjust front rail to match different glass thickness.

5. The machine is equipped with automatic clamping system and voltage stabilizing system.

6. It is a necessary tool with high precision, high efficiency and easy operation in glass processing industry.



Product flow





Product Application
