Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size

We are double glazing window making factory from Europe, it’s our 1st buying machinery from China. But the double glazing machinery from Care really make us amazing. Good quality, high automation and proffesional oversea engineering service.

—— Afaton Barthelemy

It’s our 2nd time to buy the UPVC window machine from Care Machinery, always the superior quality. We have proved that these machines working much higher effeciency than we ever bought from some others. Thanks Care Machinery!

—— Deepak Mehra

Our factory owned Italy Bottero glass cutting machine before, when it can not work any more we decide to buy the CNC glass cutting machine from Care Machinery. The machine working as well as Bottero, no doubt it’s our smart choice. I have recommonded their glass cutting machine to many friends in glass processing, why not?

—— Anthony Murano

I'm Online Chat Now

Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size

China Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size supplier
Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size supplier Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size supplier

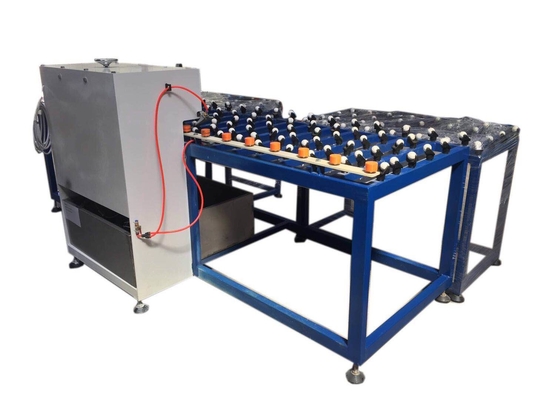

Large Image :  Portable Diamond Wheel Glass Edge Grinding Machine 2200x1500mm Max Edging Size

Product Details:

Certification: CE ISO
Model Number: CAEP03

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 7 days
Supply Ability: 60 sets per month
Detailed Product Description
Function: Glass Edge Polishing Max Edging Size: 2200x1500mm
Min Edging Size: 300x300mm Glass Thickness: 3-12mm
Grinding Tool: Diamond Wheel Grinding Speed: 18m/min
Producut: Portable Diamond Wheel Glass Edge Polishing Machine For Glass Tough Edging Dimension: 2900x1750x1100mm
High Light:

glass beveling machine

,

glass belt grinding machine

Portable Diamond Wheel Glass Edge Polishing Machine for Glass Tough Edging



Product Description



Glass edge polishing machine is used for coarse grinding the glass border to avoid injury the worker & conveyor & glass broken due to broken stress.



-Insulating glass machine for glass border
-Rough grinding and polishing for single glass; not for grinding art glass.

-Two abrasive belts are used for grinding the edges above and below.
-Change the abrasive belts by turning the hand wheel in the back, easy operation and saving effort.



Paramenters



Power: 2.3kw

Voltage: 380V/50HZ

Prcessing glass thickness: 3-12mm

Min processing glass size: 300x300mm

Max processing glass size: 2200x1500mm

Rotation rate: 2800r/min

Wheel size: D=150mm d=20mm

Overall diamention: 2900x1750x1100mm

FFE78D0D_tmp_

Product flow





Product Application





Our Services

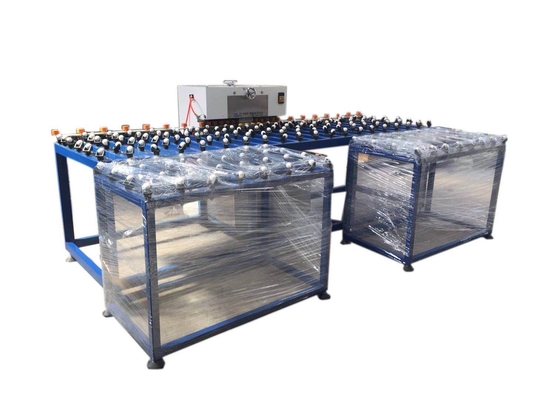

Packaging & Shipping
