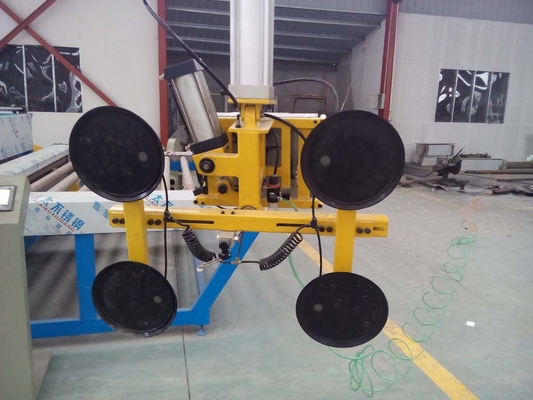

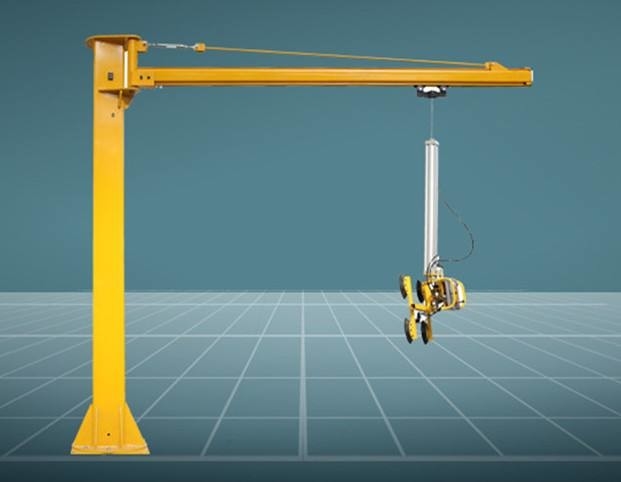

Double Suction Cup Glass Lifter Glass Moving Equipment Compressed Air Drived

China Double Suction Cup Glass Lifter Glass Moving Equipment Compressed Air Drived supplier
Double Suction Cup Glass Lifter Glass Moving Equipment Compressed Air Drived supplier Double Suction Cup Glass Lifter Glass Moving Equipment Compressed Air Drived supplier

Large Image :  Double Suction Cup Glass Lifter Glass Moving Equipment Compressed Air Drived

Product Details:

Certification: CE ISO
Model Number: CAP500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 5 days
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Function: Handling Large Glass And Tile Max Lifting Height: 1200mm
Max Lifting Weight: 500kg Sucker Number: 4pcs
Air Pressure: 0.5-0.8MPa Turning Angle: 0-90degree
Rotating Angle: 0-90degree Safety Guarantee System: 20min Working Without Pressure
Product: Double Suction Cup Glass Lifter For Handling Large Glass And Tile Drive By: Compressed Air
High Light:

glass lifting equipment

,

glass handling equipment

Double Suction Cup Glass Lifter For Handling Large Glass And Tile




Product parameter



The glass lifter with new material and double safety design is equipped with security air tank which could guarantee it still work one cycle when sudden power lost. It features better stability, much safer and more convenient to operate. All the pneumatic components are products of SMC from Japan or air TAC and SCHMALZ from Germany. It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on. Leader people deeply know that the machine’s durability, safety and easy operation are very important to the glass deep processing enterprises, so we have tested the machine countless times to make sure it is perfect.



Parameters
Model CAPL-200 CAPL-300 CAPL-500
Rated load 200kg 300kg 500kg
Sucker diameter 250mm 250mm 250mm
Sucker qty 2 4 4
Vertical turning 0°-90° 0°-90° 0°-90°
Horizontal rotation 360° 360° 360°
Weight 60kg 80kg 100kg
Air pressure >0.5bar >0.5bar >0.5bar






Product Details





Products Features


1.Suitable for moving insulating glass /tempered glass/glass curtain wall.
2.Pneumatic glass arm is used to load and unload heavy and hot glass easily. It is easy to carry and very safe and save many labor cost.
3.It features better stability, much safer and more convenient to operate.
4.It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on.
5.With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.

Product Application



The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble.
