|Function:||Commercial Glass Cutting Table||Glass Thickness:||3-19mm|
|Cutting Precision:||≤0.2mm/m||Glass Size:||4200x2800mm|
|Product Name:||Used Automatic Commercial Glass Cutting Table Machine For Sale||Servo System:||YASKAWA|
laminated glass cutting machine,
glass cutting table machine

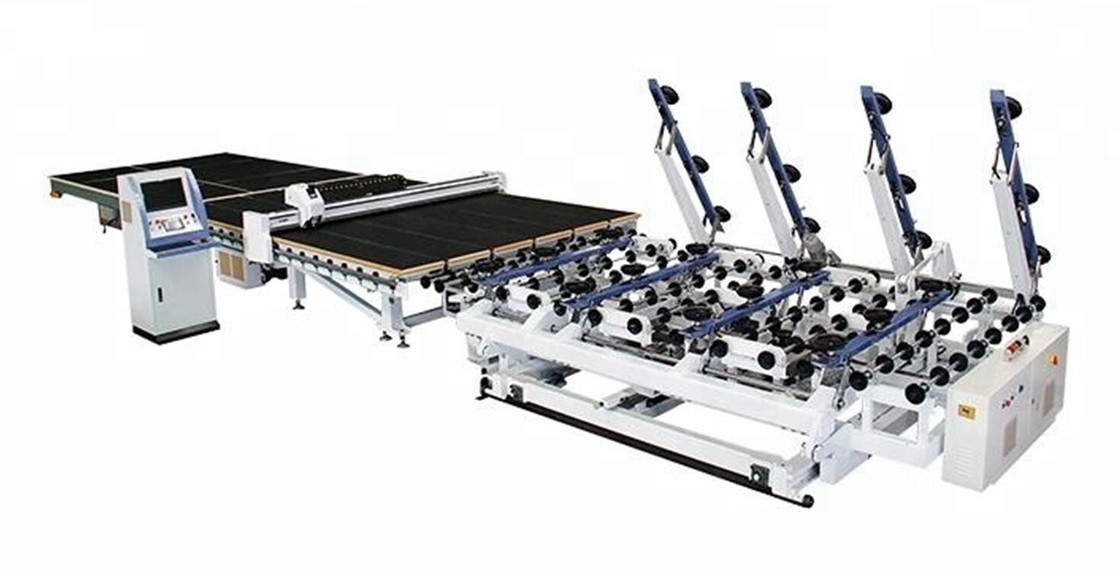

Used Automatic Commercial Glass Cutting Table Machine for Sale
Automatic Commercial Glass Cutting Table Machine adopts US Galil control system to cut glass into any shape and mainly used in construction glass,auto glass,household appliance glass,hollow door and window glass,furniture,kitchen and bathroom glass,solar glass,len glass and other glass cutting process.
Automatic Commercial Glass Cutting Table Machine is included with three equipments:glass loading machine ,glass cutting machine ,and pneumatically glass breaking table.Controlled with a commercially PC,all three machine are worked together automatically in high speed and high precision.
Automatic Commercial Glass Cutting Table Machine allows users to cut out any shape of glass with high precision. Italy Optima software, automatic cutting, with all the cutting data fully computer controlled. The operator can edit the glass size for cutting with Optima. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.
Apply the most advanced abroad two-shaft-three-link type i-shaped design, so as to achieve precision stability under long term use and fast operational;applicble to construction curtain walls, Auto Windshield,crafts,furniture,hollow,solar glass,etc.,or set cutting linear or special-shaped glass.
|Parameters of Care Automatic Commercial Glass Cutting Table Machine|
|Power supply||380V 50Hz 3P (or customized)|
|Process glass scale||Max glass size||4200×2800mm|
1. USA Galil controlling system
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimazation software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass
