|Function:||Insulated Glass Washing||Max Washing Glass Size:||2000x2500mm|
|Washing Glass Thickness:||3-19mm||Washing Type:||Vertical|
|Washing Brush:||6 Pcs||Washing Speed:||8m/min|
|Machine:||Second Hand Vertical Glass Washer For Insulated Glass Washing||Parts Material:||Stainless Steel Or Copper|
industrial glass washing machines,
glass washing and drying machine

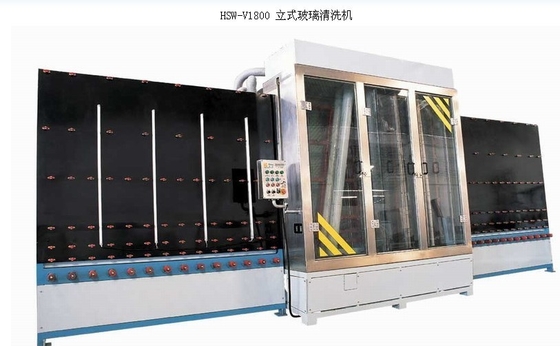

Care high speed vertical glass washing machine is the key facility of automatic insulating glass production line. The washer have functions of glass cleaning, glass drying and testing etc.
1. The transmission is applied with gear system,frequency for speed adjustment, the brushes are driven by 2 groups of motors independently,so that ensure the stability.
2. it is equipped with 3 pair of brushes, available for LOW-E glass,coated glass and mirrors.
3. 2 pair of special air knife with warm air for drying system.
4. all the parts connected to the water are stainless steel or waterproof material made.
1, Europe design concept, easy and intelligent operation;
2, World famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale with high speed, various models and customization available;
5, With functions of glass transferring, glass washing, glass drying and glass checking;
6,Three pairs of high quality washing brushes, suitable for Low E glass washing;
|Parameters of Care high speed vertical glass washing machine|
|Power supply||380V 50Hz 3P (or customized)|
|Process glass scale||Max glass sheet||2000×2500mm|
|Min glass sheet||300×400mm|
|Original glass thickness||3~19mm|
|Working speed||Washing speed||8m/min|
|Note: other processing scale available or customized.|
1, plastic stretch film coating;
2, steel pallet and plywood case package;
3, LCL or FCL by sea transportation;
