Payment & Shipping Terms:
|Function:||PVC UPVC Window Lock Hole Milling||Milling Size:||100x300mm|
|Input Power:||1.85KW||Product:||Fast Speed PVC UPVC Window Machine For Lock Hole Milling|
|Profile Size:||100x120mm||Ratating Rate:||12000r/min|
upvc window making machine,
cnc corner cleaning machine

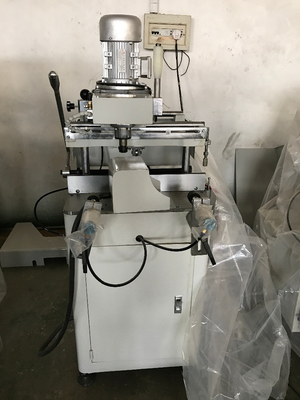

1. Used for milling all kinds of lock holes.
2. Formed by three-hole drill part(horizontal direction)and copy milling part(vertical direction).
3. Movement of three drill head increases the guide pin under the guidance, guarantee the three holes on the underside of the parallel.
4. Three drill rear layout,easy operation,accord with human body engineering principle.
5. Automatic feeding of three drill gas-liquid damping,reduce the labor intensity of the workers.
6. Profile modeling by profile mound plate and auxiliary positioning for modeling.
Air pressure: 0.6-0.8MPa
Rotation rate: 12000r/min
Profile size: 120x100mm(WxH)
Milling range: 100x300mm
