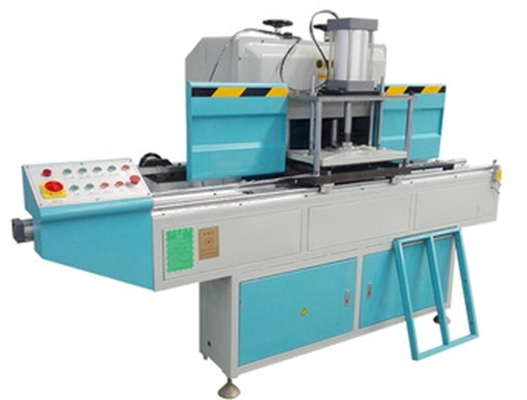

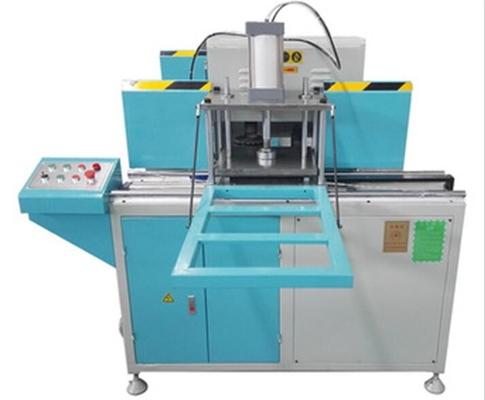

Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine

Large Image : Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine

Product Details:

Certification:	CE ISO
Model Number:	DX06-250A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	By negotiation
Packaging Details:	1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time:	20 days
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Function:	Profile Section Aluminium End Milling Machine	Profile Height:	120mm
Input Power:	18.8KW	Product:	Heavy Duty Aluminum Window Machine Tool For Profile Section End Milling
Blade Size:	250mm	Ratating Rate:	2800r/min
Highlight:	aluminium profile cutting machine , aluminium windows cutting machine

Aluminium Profile End Milling Machine for Aluminum Window and Door

Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine

Product detail

The end milling machine tool is used for processing of end surface, stepped surface and end groove of aluminum profile.

Power	6.6kw
Voltage	380V/50HZ
Air pressure	0.6-0.8MPa
Rotation rate	2800r/min
Saw size	D=250mm d=32mm
Milling height	120mm

Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine

Product Display

Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine

Products Features

1. Used for milling the aluminum mullion profile.

2. Large capacity milling, multi-pieces profile milling in one cycle.

3. Universal milling blades can be adjusted in up/down, left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.

4. Can work for the reinforced mullion in one cutting/milling cycle.

5. Large tools with high and stable milling speed for guarantee the working quality.

6. Hydraulic clamping feeding system,features smooth milling.

Product Flow

Heavy Duty Aluminium Doors And Windows Manufacturing Machines / End Mill Machine
