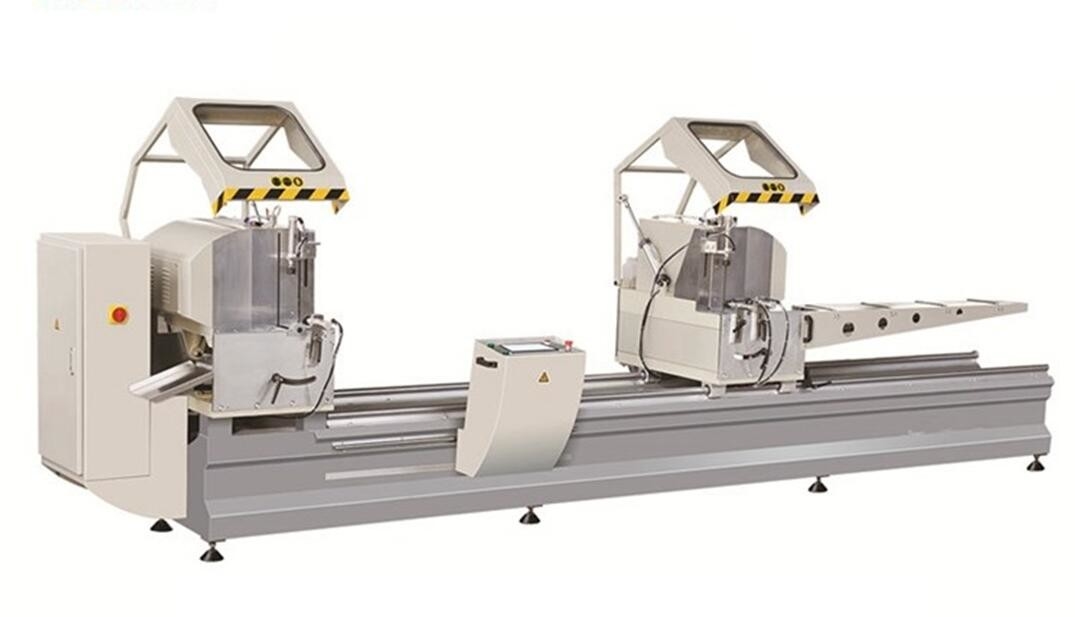

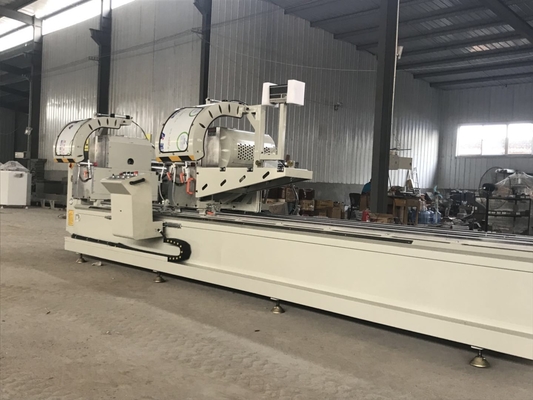

High Precise Aluminum Window Machine With Digital Display Double Mitre Cuting Saw
-
-
Large Image :
High Precise Aluminum Window Machine With Digital Display Double Mitre Cuting Saw
|
Product Details:
| Certification: |
CE ISO |
| Model Number: |
LJZ2-450X3700 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1set |
| Price: |
By negotiation |
| Packaging Details: |
1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation; |
| Delivery Time: |
20 days |
| Supply Ability: |
30 sets per month |
|
Detailed Product Description
| Function: |
Precise Aluminum Window Cutting |
Rotating Rate: |
2800r/min |
| Blade Size: |
D=450mm |
Cutting Scale: |
100x200mm |
| Cutting Length: |
400-3700mm |
Cutting Angle: |
45, -45, 90 Degree |
| Input Power: |
3.55Kw |
Product: |
High Precise Aluminum Window Cutting Machine Digital Display Double Mitre Cuting Saw |
| Highlight: |
aluminium windows cutting machine, aluminium profile cutting machine |
High Precise Aluminum Window Cutting Machine Digital Display Double Mitre Cuting Saw
Product parameter
Used for the profile cutting of aluminum windows and doors,curtain wall and industrial aluminum.
- Adopts industry grade computer system, closed-loop controlled, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.1mm.
- Adopt Push-button operation screen, and with USB interface, it can realize the data interchange via by input external memorizer.
- Optimized function: optimizing to cut according to the working list.
- Tabulation cutting function: several kinds of profiles can be selected quickly.
- Continuous feeding: auto feeding profile at 90°cutting.
- Angle automatic indexing: -45°, 90°.
- High precision linear guiding pair ensured steady and long-term processing accuracy.
- Adopt imported air-hydraulic conversion device, so that ensure running stably.
- Stability high precision machine body, the design of machine body conform to the aesthetic point and human body engineering principle.
- Auto-opening shield with rubber seal makes the operator more safety.
- the middle profile supporter and movable carrier make the loading convenient. it’s compact structure follows the operation custom in better way.
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
| Voltage |
380V/50HZ |
| Power |
|
3.55KW |
| Working parameters |
Saw size |
D=450mm d=30mm |
| Rotation rate |
2800r/min |
| Air pressure |
0.5-0.8MPa |
| Cutting scale |
HxWxL (mm) |
100x200x(400-3700) |
1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;
2, Saw blade rotate smoothly due to high accuracy main spindle;
3, The interface adopt the color touching display,which is briefness and intuitionistic;
4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;
5, 45°and 90°cutting is available;
