|Function:||Double Glazing Window Auto Sealing||Max Sealing Glass Size:||2000x2500mm|
|Min Sealing Glass Size:||260x400mm||Processing Glass Thickness:||3-19mm|
|IG Unit Thickness:||12-48mm||Insulation Thickness:||6-24mm|
|Gluing Depth:||3-18mm||Servo System:||YASKAWA|

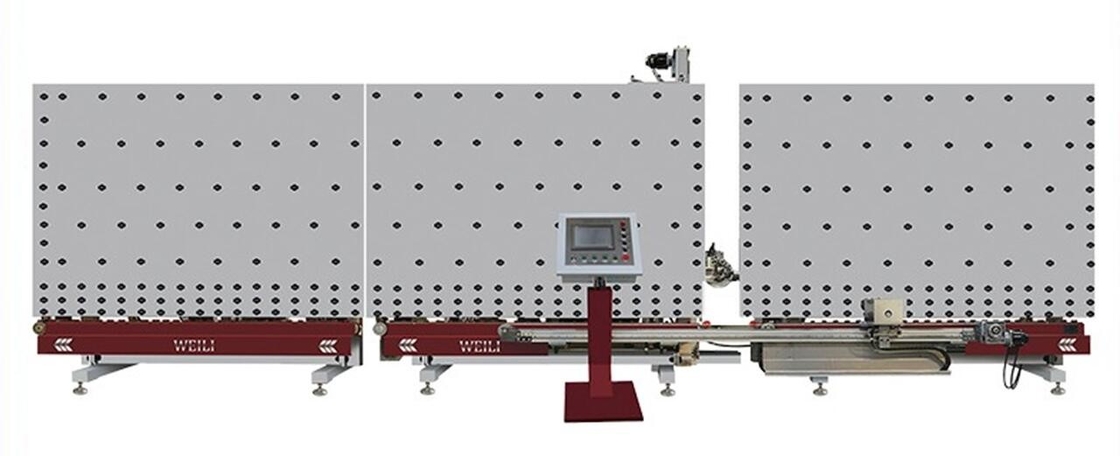

|Product:||Polysufide Two Component Double Glazing Window Auto Sealing Machine For Sale||Dimension:||7800×3000×2750mm|
automatic sealing machine,
curtain wall machine
It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
There are high-pressure valves in the underpart entrance of solidification pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other.
Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding scale is reached.
|Parameters of Glass Sealing Machine|
|Power supply||380V 50Hz 3P (or customized)|
|Process glass scale||Max glass sheet||2000x2500mm|
|Min glass sheet||260×400mm|
|Original glass thickness||3~18mm|
|IG glass sheet thickness||12-48mm|
|Gluing ability||Gluing depth||3-18mm|
|Working speed||Gluing speed||5-40m/min|
|Note: various model with other processing scal customized available.|
1, YASKAWA servo system and world famous brands of key components, ensure stable operation and long service life;
2, PLC controlling system, touching screen operation;
3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);
4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;
5, Timing automatic glue diecharging, avoid glue blocking;
6, V-type rubber belt for transportation, easily replaced once worn;
7, Programmable memory function, one key touching to different size of glass sheet processing;
8, Compact outlook design, saving working area;
