CNC AutomaticAluminum Window Machine Heavy Duty Corner Key Cutting Saw Machine

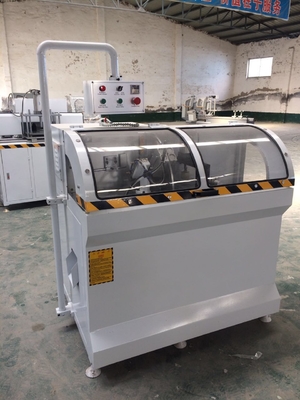

Large Image : CNC AutomaticAluminum Window Machine Heavy Duty Corner Key Cutting Saw Machine

Product Details:

Certification:	CE ISO
Model Number:	LJJZ-CNC-500X600

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	By negotiation
Packaging Details:	1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time:	20 days
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Function:	Aluminum Window Corner Key Cutting	Rotating Rate:	2800r/min
Blade Size:	D=500mm	Cutting Scale:	180x140x60mm
Input Power:	2.2Kw	Product:	CNC Automatic Aluminum Window Machine Heavy Duty Corner Key Cutting Saw Machine
High Light:	aluminum window making machine , aluminium windows cutting machine

CNC Automatic Aluminum Window Machine Heavy Duty Corner Key Cutting Saw Machine

Product parameter

The cutting saw is special used for cutting of aluminum corner brace, which is used for corner fabrication of aluminum window. The machine adopts horizontal feeding and takes linear guide rail as direction, and adopts air-liquid convertor to assure stable cutting speed. Adopt auto PLC control and man-machine interface operation, with easy operation and hi-efficiency. Imported cutting blade ensures high precision and efficiency.

Power: 2.2kw

Voltage: 380V/50HZ

Air pressure: 0.6-0.8MPa

Rotation rate: 2800r/min

Saw size: D=500mm d=30mm

Cutting scale: 180x140x60mm (HxWxL)
