LJVW -65 High Performance CE ISO Upvc Window Making Machine V Groove Cutting Saw

Large Image : LJVW -65 High Performance CE ISO Upvc Window Making Machine V Groove Cutting Saw

Product Details:

Certification:	CE ISO
Model Number:	LJVW-65

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	By negotiation
Packaging Details:	1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time:	20 days
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Function:	Window V Notch Cutting Saw	Air Pressure:	0.5-0.8MPa
Rotating Rate:	2800r/min	Cutting Height:	60mm
Total Power:	1.5Kw	Product:	Plastic PVC Window Making Machine Window V Notch Cutting Saw
High Light:	upvc window welding machine , upvc window making machine

V Groove Cutting Saw For Upvc & PVC Window And Door Making Machine and Aluminum Windows And Doors Making Machine

Product parameter

PVC V-cutting saw is used for 90 degree V groove cutting on profiles. Ensure easy operation, safety, precise cutting and convenient maintenance.Adopts industry grade computer system, closed-loop controlled, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.1mm.High precision linear guiding pair ensured steady and long-term processing accuracy. For 90°V-shaped groove cutting.Pneumatic driving,easy operation.Smoothly feeding and high cutting precision.

Power	1.5kw
Voltage	380V/50HZ
Air pressure	0.4-0.8MPa
Rotation rate	2800r/min
Saw size	D=300mm d=30mm
Cutting height	0-60mm

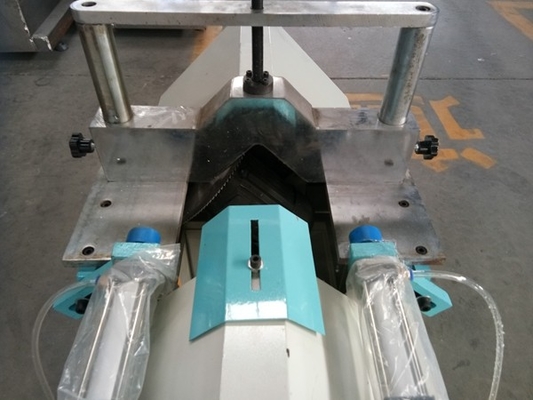

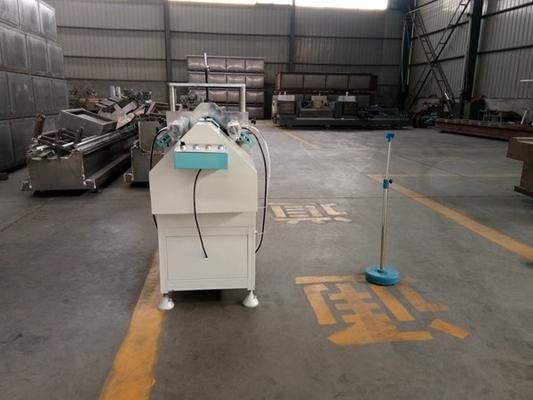

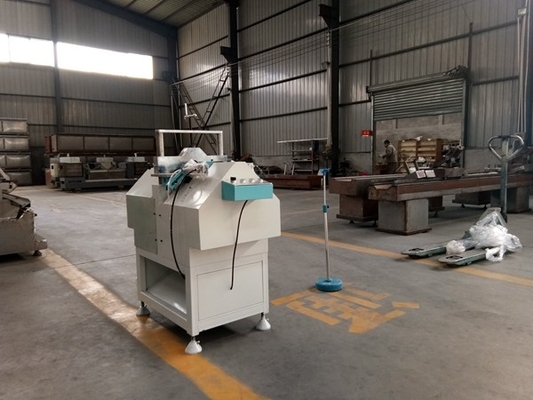

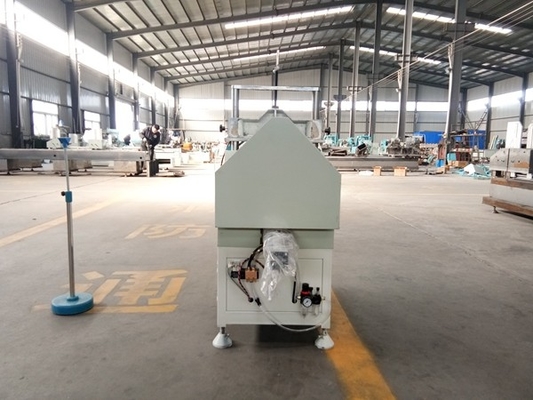

Product Display

Product detail

Tag:

upvc window welding machine,

upvc window making machine
