Professional Vertical Double Glazing Equipment Insulating Glass Washing Machine

China Professional Vertical Double Glazing Equipment Insulating Glass Washing Machine supplier
Professional Vertical Double Glazing Equipment Insulating Glass Washing Machine supplier Professional Vertical Double Glazing Equipment Insulating Glass Washing Machine supplier

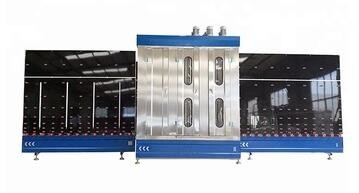

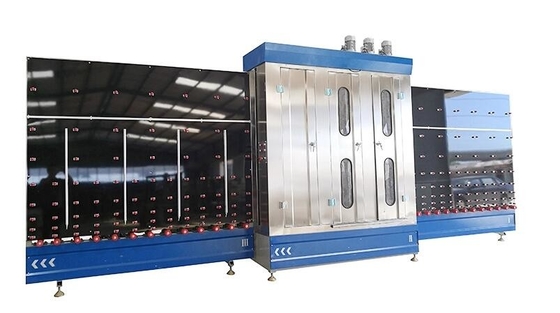

Large Image :  Professional Vertical Double Glazing Equipment Insulating Glass Washing Machine

Product Details:

Certification: CE ISO
Model Number: CAGW2030

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 25 days
Supply Ability: 30 sets per month
Detailed Product Description
Function: Industrial Automatic Glass Processing Max Washing Glass Size: 2000x3000mm
Washing Glass Thickness: 3-19mm Washing Type: Vertical
Washing Brush: Three Pairs Washing Speed: 8m/min
Machine: Industrial Automatic Glass Processing Machine Glass Washer Parts Material: Stainless Steel Or Copper
High Light:

industrial glass washing machines

,

flat glass washing machine



China Professional Vertical Double Glazing Insulating Glass Washing Machine




Product Description

· It is painted by an electrostatic paint for protection against a rust and scratchs.

· Conic moving gears are made from a special steel alloy.

· Nuts corrosion-proof, apertures for nuts aluminium.

· A working direction of action with left on the right party.

· Brushes from above and from below have adjustment for approach.

· The electro system corresponds to safety rules.

· Heating up plates and water tank from stainless steel.

· Special brushes for reflecting glasses.

· Adjustment of speed of a running tape.

· Covers stainless steel windows.

· LOW-E option

· Power: 380V 50HZ 3 phase or 3 Phase,220v ,60hz





Functions



1, Europe design concept, easy and intelligent operation;

2, World famous brands of key components, ensure stable operation and long service life;

3, Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass;

4, Large glass processing scale with high speed, various models and customization available;

5, With functions of glass transferring, glass washing, glass drying and glass checking;

6,Three pairs of high quality washing brushes, suitable for Low E glass washing;


Paramenters



Parameters of Care high speed vertical glass washing machine
Power supply 380V 50Hz 3P (or customized)
Total power   12KW
Process glass scale Max glass sheet 2000×3000mm
Min glass sheet 300×400mm
Original glass thickness 3~18mm
Working speed Washing speed 8m/min
Note: other processing scale available or customized.
