Product Details:
Payment & Shipping Terms:
|
| Function: | Double Glazing Two Component Extruder | Max Sealing Glass Size: | As Customized |
|---|---|---|---|
| Min Sealing Glass Size: | 260x400mm | Processing Glass Thickness: | 3-19mm |
| IG Unit Thickness: | 12-48mm | Insulation Thickness: | 6-24mm |
| Gluing Depth: | 3-18mm | Product: | Double Glazing Two Component Extruder Machine For Insulating Glass Window Secondary Gluing |
| High Light: | insulated glass equipment,insulating glass machine |
||
Product parameter

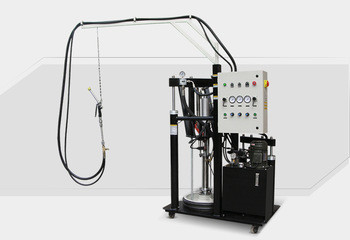

Two component sealing machine is semi automatic sealing machine for insulating glass production line, which work instead of hand sealant, greatly improve working efficiency and ensure quality of insulating glass sheet.
|
Parameters of Care Insulating Glass Production line |
|
|
Power supply |
380V 50Hz 3P (or customized) |
|
Mixing ratio |
6:1-14:1 |
|
Material drump |
200L |
|
Extruding pressure |
25MPa |
|
Output |
4-10L/min |
|
L×W×H (mm) |
1100×1000×2000mm |
|
Net weight |
600kg |
Product Display
Product detail
