High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller

China High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller supplier
High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller supplier High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller supplier

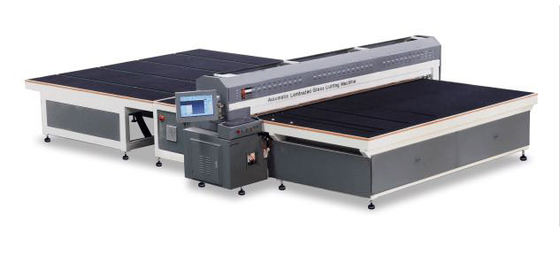

Large Image :  High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller

Product Details:

Certification: CE ISO
Model Number: CALC3826

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 30 days
Supply Ability: 30 sets per month
Detailed Product Description
Function: Lamination Glass Cutting Glass Thickness: 3-10mm
Cutting Lamination: 0.38mm—1.52mm Glass Size: 3600x2600mm
Product Name: CNC Laminated Glass Processing Machines For Lamination Glass Cutting Cutting Speed: 100m/min
High Light:

glass processing equipment

,

glass working machines

CNC Laminated Glass Processing Machines for Lamination Glass Cutting

High Speed CNC Laminated Glass Cutting Machine With GALIL Move Controller

Product Description



Appliance configuration

1 .GALIL Move controller

2 .Japan Fuji servo motor Fuji driver

3 .SMC Precision pneumatic controller

4. Delta inverter

5. Panasonic fiber amplifier

6. OMRON switching power supply

7. Low voltage component Schneider



Major function:

1, optimize layout

2, automatic stripping

3, production database

4, high-speed quartz tube heating

5, belt conveyor

6, Chinese and English interface



Basic performance:

1, Equipment size:7000*4780*1450(mm)

2, Cutting the maximum length:3500mm

3, Cuting the minimum length:250mm

4, Monolithic glass thickness:3—10mm

5, The thickness of laminated glass:0.38mm—1.52mm

6, Cutting speed:100m/min

7, Glass positioning: mechanical positioning/photoelectric positioning

8, Work table height:900±50mm



Install power

1, Total power:15KW

2, Install power:380V/50HZ

(Can be customized according to user requirements)

3, Minimum air pressure:0.8MPa



Working glass precision

1, Positioning accuracy:±0.25mm

2, Straight line cutting accuracy:±0.30mm

3, Parallel precision:0.20mm

4, Diagonal accuracy(Area less than 2m2): 0.5mm
