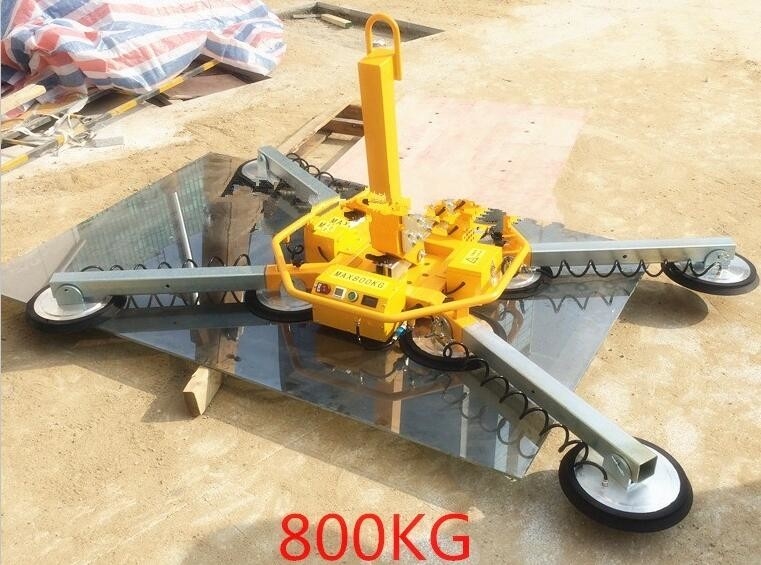

Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle

China Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle supplier
Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle supplier Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle supplier

Large Image :  Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle

Product Details:

Certification: CE ISO
Model Number: SD800-03

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 5 days
Supply Ability: 60 sets per month
Detailed Product Description
Function: Glass Vacuum Lifter Max Lifting Height: Any Height
Max Lifting Weight: 800kg Sucker Number: 8pcs
Vacuum Pressure: >0.5bar Turning Angle: 0-90degree
Rotating Angle: 360 Degree Safety Guarantee System: 20min Working Without Pressure
Product: Glass Vacuum Lifter Glass Processing Machines Drive By: Vacuum Pump
High Light:

glass processing equipment

,

glass working equipment

Glass Vacuum Lifter Glass Processing Machines

Product parameter


Parameters of Care glass vacuum lifter
Model SD800-03
Rated load 800kg
Sucker diameter 300mm
Sucker qty 8
Vertical rotation 0°-90°
Horizontal rotation 360°
Min structure size 725x1030mm
Max structure size 1130x1810mm
Vacuum pressure >0.5bar
Power battery

Note: various lifting capacity and power supply available.



Adjustable manual vacuum lifter is a glass handling equipment with flexible structure and simple operation. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand, dispensed with electricity, safe and reliable. It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises.



Products Features



1. The vacuum glass lifter is for handling the glass sheet.

2. 12VDC Power supply.

3. Max. carrying capacity up to 800kg.

4. The vacuum pump, valve, switch and some important spare parts we are import from oversea.

5. Stable performance, Easy to maintain, Efficient, safe, quick, easy.

6. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.

7. The suction pad can be adjustablem, can be turned off and open individuallly.

8. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

9. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the workpiece not falling down for 5 minutes. Won’t bring about equipment damaged, etc Safe accidents.(EU CE standard for 5 minutes);



Glass Vacuum Lifter Glass Processing Machines With 360 Degree Rotating Angle

Product Application




The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble.
