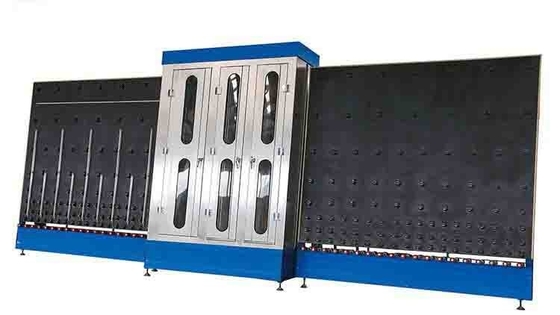

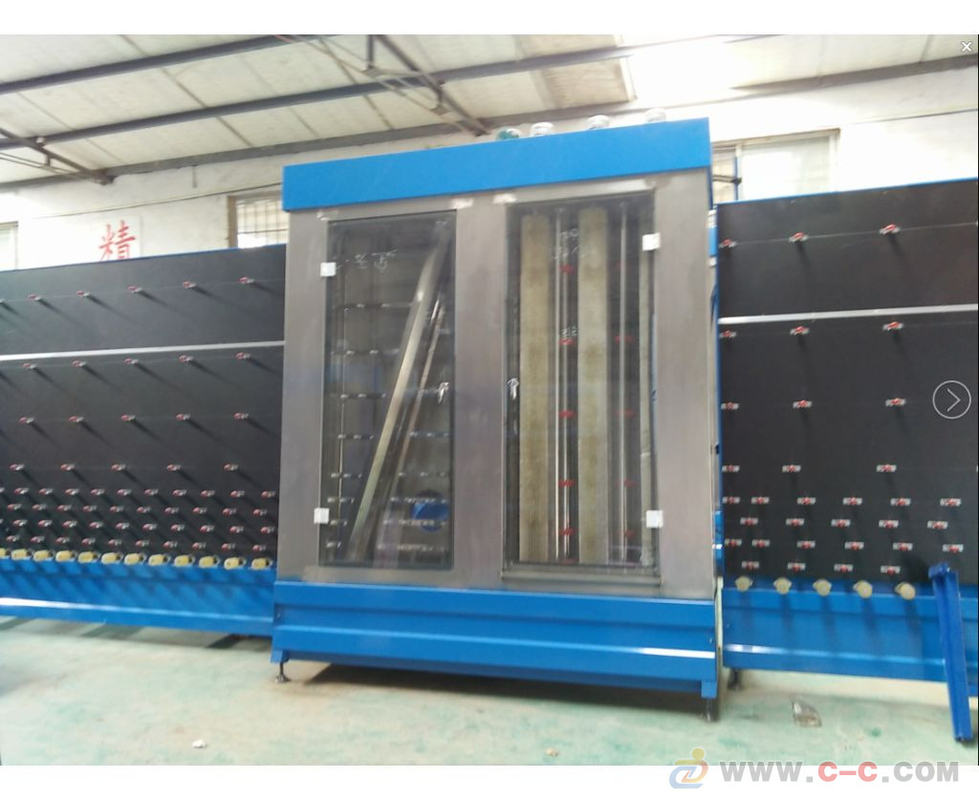

Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush

China Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush supplier
Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush supplier Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush supplier

Large Image :  Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush

Product Details:

Certification: CE ISO
Model Number: CAGW2025

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 25 days
Supply Ability: 30 sets per month
Detailed Product Description
Function: Industrial Automatic Glass Processing Max Washing Glass Size: 2000x2500mm
Washing Glass Thickness: 3-19mm Washing Type: Vertical
Washing Brush: Three Pairs Washing Speed: 8m/min
Machine: Industrial Automatic Glass Processing Machine Glass Washer Parts Material: Stainless Steel Or Copper
High Light:

glass processing equipment

,

glass working machines

Industrial Automatic Glass Processing Machine Glass Washer



Product Description


Industrial Automatic Glass Processing Machine Glass Washer is designed for high speed washing and drying for various kinds of glass in vertical way.


1. The transmission is applied with gear system,frequency for speed adjustment, the brushes are driven by 2 groups of motors independently,so that ensure the stability.

2. it is equipped with 3 pair of brushes, available for LOW-E glass,coated glass and mirrors.

3. 2 pair of special air knife with warm air for drying system.

4. all the parts connected to the water are stainless steel or waterproof material made.



Industrial Glass Washer Glass Processing Machines With Three Pairs Washing Brush



1, Europe design concept, easy and intelligent operation;

2, World famous brands of key components, ensure stable operation and long service life;

3, Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass;

4, Large glass processing scale with high speed, various models and customization available;

5, With functions of glass transferring, glass washing, glass drying and glass checking;

6,Three pairs of high quality washing brushes, suitable for Low E glass washing;



Paramenters



Parameters of Care high speed vertical glass washing machine
Power supply 380V 50Hz 3P (or customized)
Total power   12KW
Process glass scale Max glass sheet 2000×2500mm
Min glass sheet 300×400mm
Original glass thickness 3~19mm
Working speed Washing speed 8m/min
Note: other processing scale available or customized.
