Product Details:
Payment & Shipping Terms:
|
| Function: | Desiccant Filling | Max Filling Size: | 2000x2000mm Or Customized |
|---|---|---|---|
| Aluminum Spacer Width: | 5.5-26.5mm | Filling Amount: | Adjustable |
| Filling Speed: | 5-10sec/pcs | Product: | Insulating Glass Production Line Desiccant Filling Machine For IGU Moisture Proof |
| High Light: | insulating glass machine,glass manufacturing equipment |
||

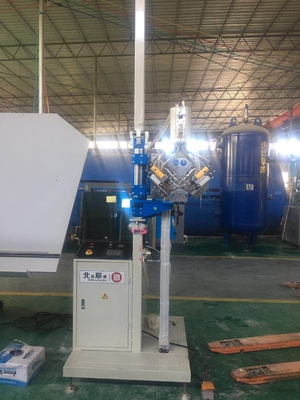

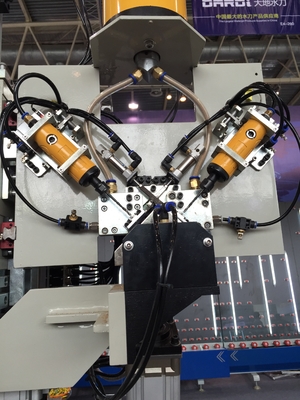

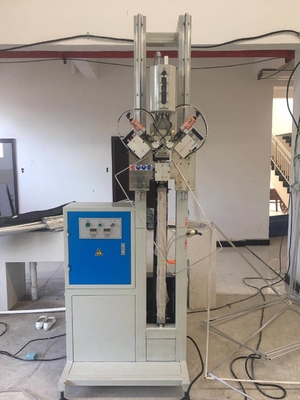

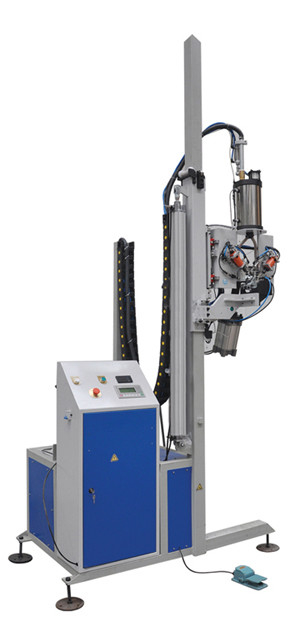

The machine is used for desiccant filling into aluminum spacer, so as to absorb moisture in insulating glass sheet.
| Parameters of Care Desiccant filling machine | ||
| Power supply | 220V 50Hz (or customized) | |
| Total power | 0.5KW | |
| Working parameters | Aluminum spacer width | 5.5-26.5mm |
| Filling speed | 5-10sec/pcs | |
| Air pressure | 0.5-0.8MPa | |
| Max filling size | 2000x2000mm | |
| Dimension | L×W×H (mm) | 1050×1000×4000 |
1.PLC control system
2.Both bended and corner-connected spacers are available
3.Adjustable filling height according to the spacer size
4.Automatic feeding material and plugging the drilled hole
5.Preset function for the filling speed
Product flow
