Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed

China Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed supplier
Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed supplier Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed supplier

Large Image :  Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed

Product Details:

Certification: CE ISO
Model Number: BM20-CNC

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: Aluminum Window Arch Bending Hydraulic Stress: 20T
Positioning Accuracy: 0.01mm Three Shaft Speed: 1-14r/min
Axial Spacing: 350-600mm Min. Bend Radius: R=80mm
Spindle Diameter: 60mm Spindle Number: Three
Machine: CNC Aluminum Window Arch Bending Machine For Window Making Power Supply: 380V 50Hz
High Light:

aluminum bending machine

,

arch bending machine

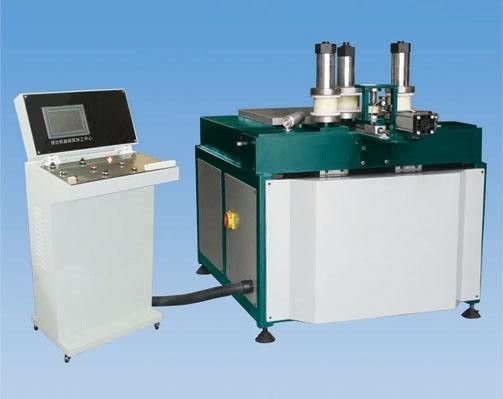

CNC Aluminum Window Arch Bending Machine for Window Making

Description



1. The machine adopts CNC controller, which ensure easy operation and high precision.

2. Adopting CNC software and touch screen, make the bending operation easy.

3. The bending machine is special designed for bending of various metal materials, such as Iron, copper, and aluminum.

4. The machine can bend various shapes, such as C-shape, S-shape, U-shape, whole circle and spring.

5.Capable of detecting material rebound data, eliminate material rebound.

6, No damage or scratch to bending material, suitable for painted or color profile.



Parameter



Model BM200-CNC
Power supply 380V 50Hz
Input power 5.8Kw
Hydraulic stress 20T
Positioning accuracy 0.01mm
Three shaft speed 1-14r/min
Axial spacing 350-650mm
Min. bend radius R=80mm
Spindle diameter 60mm
Machine size L*W*H=1700*1100*1300mm
Weight 750Kg





Application



Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed



Window Making CNC Profile Bending Machine 1-14r / Min Three Shaft Speed
