High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine

China High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine supplier
High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine supplier High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine supplier

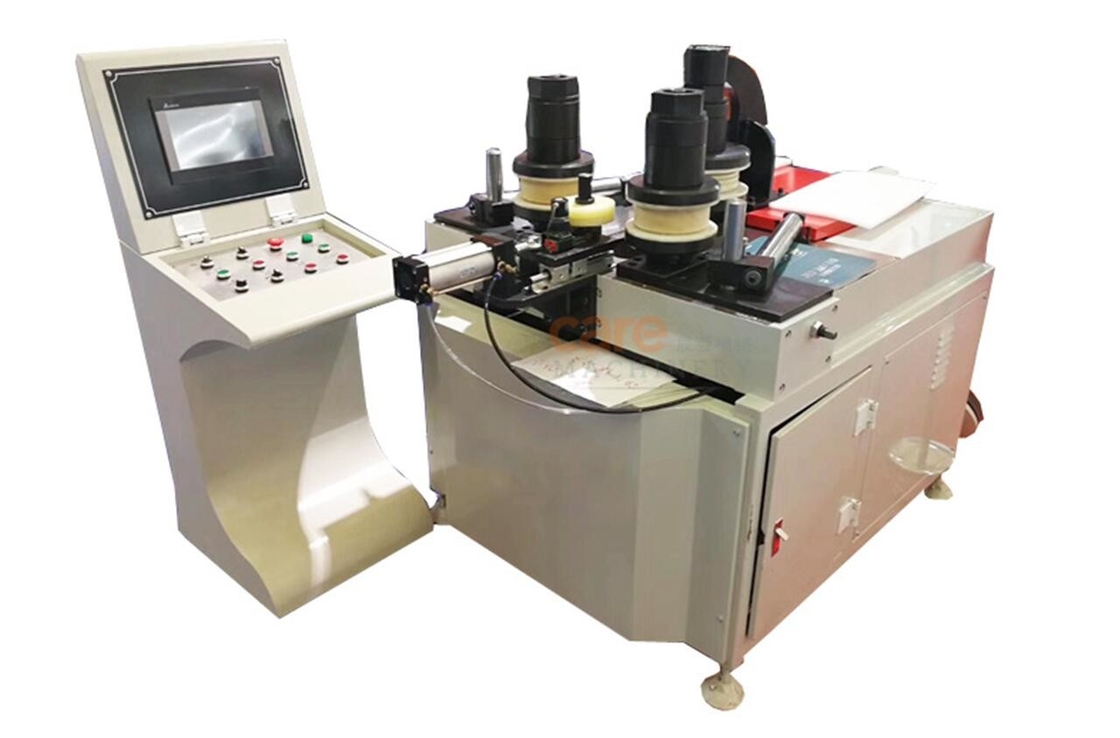

Large Image :  High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine

Product Details:

Certification: CE ISO
Model Number: BM20-CNC

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: Aluminum Window Frame Bending Hydraulic Stress: 20T
Positioning Accuracy: 0.01mm Three Shaft Speed: 1-14r/min
Axial Spacing: 350-600mm Min. Bend Radius: R=80mm
Spindle Diameter: 60mm Spindle Number: Three
Machine: Full Automatic CNC Profile Bending Machine For Aluminum Window Frame Power Supply: 380V 50Hz
High Light:

aluminum bending machine

,

aluminium profile bending machine

Full Automatic CNC Profile Bending Machine for Aluminum Window Frame

Description



1. This machine is mainly used for bending metal material such as iron, copper, aluminum and special-shaped material.

2. This machine equipped with three driving rolls, which can avoid sliding for profile.

3. The maximum hydraulic pressure can be up to 20 tons, which can easily bending all kinds of aluminum profiles and window and doors frame(square steel tube)

4. All profiles can be bended at once, high efficiency, no wear and tear; can also be used as many times as required.

5. Three sets of driving rollers are controlled by CNC device, which can move smoothly and realize precision positioning.The positioning precision is +-0.02mm

6. The distance between rollers can be customized and adjusted.

7. This machine is placed horizontally that can be suitable for different size and weight profile.It can be controlled manually and automatically.

8. Each procedure can set different feeding speed, which greatly enhances material quality and meet productivity requirement.

9. The mould is simple and useful and can bend Radius 250mm aluminum profile, which cannot produce distortion.



Parameter



Model BM200-CNC
Power supply 380V 50Hz
Input power 5.8Kw
Hydraulic stress 20T
Positioning accuracy 0.01mm
Three shaft speed 1-14r/min
Axial spacing 350-650mm
Min. bend radius R=80mm
Spindle diameter 60mm
Machine size L*W*H=1700*1100*1300mm
Weight 750Kg

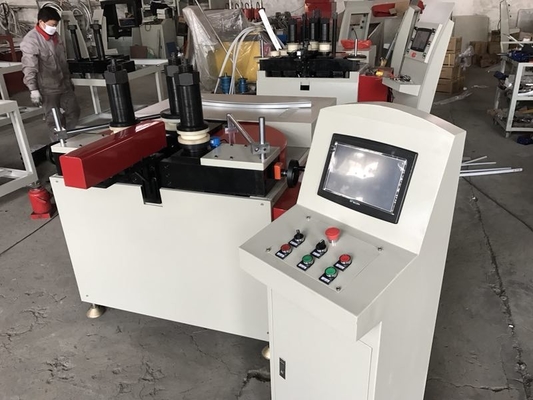

Application



High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine



High Precision Window Frame Bending Machine , Aluminum Extrusion Bending Machine
