Triple Glass Double Glazing Machinery For Float Glass Insulated Oversea Engineer Service

China Triple Glass Double Glazing Machinery For Float Glass Insulated Oversea Engineer Service supplier
Triple Glass Double Glazing Machinery For Float Glass Insulated Oversea Engineer Service supplier Triple Glass Double Glazing Machinery For Float Glass Insulated Oversea Engineer Service supplier

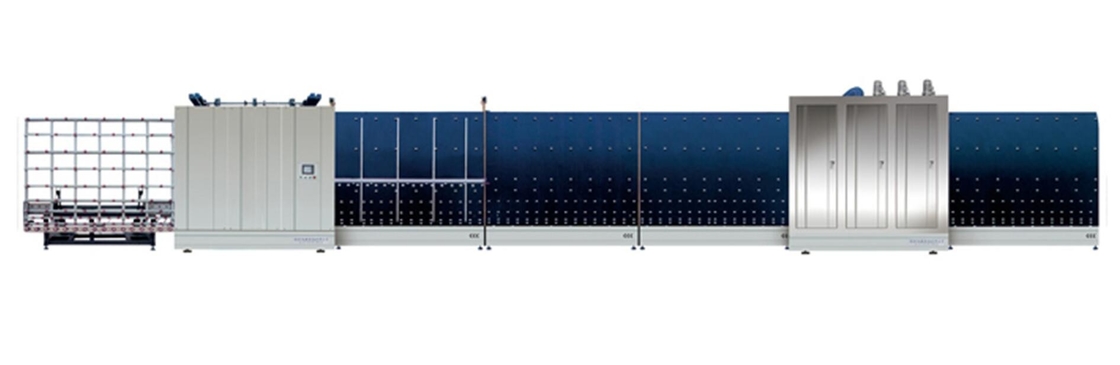

Large Image :  Triple Glass Double Glazing Machinery For Float Glass Insulated Oversea Engineer Service

Product Details:

Certification: CE ISO
Model Number: CAIG1825

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: by negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15sets per month
Detailed Product Description
Max Glass Sheet: 1800x2500mm Glass Thickness: 3-19mm
IG Glass Thickness: 12-48mm Insulation Thickness: 6-24mm
Washing Speed: 0-12m/min Assembling Speed: 8-48m/min
Dimention: 16000x2500x2680 Function: Triple Glass Glazing
Highlight:

double glazing glass machine

,

double glazing manufacturing equipment

Triple Glass Double Glazing Machine with Oversea Engineer Service for Float Glass Insulated

Introduction


Care Double Glazing Machine adopts the most advanced double glazing manufacture technology and craft in the world. It is the standard machine for double glazing producing, which composed of high speed glass washing machine and automatic glass assemble machine. Double Glazing Machine is the standard machine for double glazing producing, which composed of high speed glass washing machine and automatic glass assemble machine.

Details



Parameters:

Parameters of Care Double Glazing Machine
Model CAIG1825CAIG2030CAIG2535
Power supply380V 50Hz 3P (or customized)
Total power 18KW22KW27KW
Process glass scaleMax glass sheet1800x2500mm2000x3000mm2500×3500mm
Min glass sheet300×450mm
Original glass thickness3~18mm
IG glass sheet thickness12-48mm
Insulation thickness6-24mm
Working speedWashing speed0-12m/min
Assemble speed8-48m/min
DimensionL×W×H (mm)16000x2500x268019000x2500x288022000×2500×3380
Net weight6200kg7200kg8000kg
Note: various model with other processing scal customized available.

Advantages


1, Europe design concept, easy and intelligent operation;
2, World famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale, various models and customization available;
5, Big output capacity, 1,000pcs output in one working day;
6, Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7, Automatic argon air gas filling while glass sheet assembling process;
8, PLC controlling system, touching screen operation;
