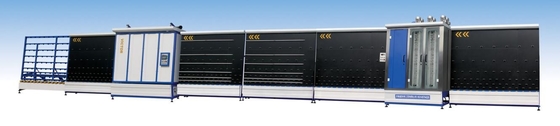

Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ

We are double glazing window making factory from Europe, it’s our 1st buying machinery from China. But the double glazing machinery from Care really make us amazing. Good quality, high automation and proffesional oversea engineering service.

—— Afaton Barthelemy

It’s our 2nd time to buy the UPVC window machine from Care Machinery, always the superior quality. We have proved that these machines working much higher effeciency than we ever bought from some others. Thanks Care Machinery!

—— Deepak Mehra

Our factory owned Italy Bottero glass cutting machine before, when it can not work any more we decide to buy the CNC glass cutting machine from Care Machinery. The machine working as well as Bottero, no doubt it’s our smart choice. I have recommonded their glass cutting machine to many friends in glass processing, why not?

—— Anthony Murano

I'm Online Chat Now

Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ

China Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ supplier
Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ supplier Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ supplier Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ supplier Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ supplier

Large Image :  Inline Gas Filling Double Glazing Machinery For Hollow Glass Window 380V 50HZ

Product Details:

Certification: CE ISO
Model Number: CAIG1620

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: by negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15sets per month
Detailed Product Description
Max Glass Sheet: 1600x2000mm Glass Thickness: 3-18mm
IG Glass Thickness: 12-48mm Insulation Thickness: 6-24mm
Washing Speed: 0-12m/min Assembling Speed: 8-48m/min
Service: Oversea Engineer Service Dimention: 14000x2500x2380mm
Power Supply: 380V 50HZ Power: 16KW
High Light:

double glazing glass machine

,

window glass making machine

Vertical Double Glazing Machinery with Inline Gas Filling for Hollow Glass Window

Introduction


Care Double Glazing Machinery meeting wide-ranging requirements both high speed production and mass intensive production. It is especially equipped for the production of coated double glazing elements with aluminum spacers. The assembly and gas filling press keeps both gas loss and cycle times low. At the end of the line, the sealing station ensures stability and above all perfect corners.Final auto seal machine perfect to finish whole double glazing production to save much more time and cost on double glazing production.

Details



Parameters:

Parameters of Care Double Glazing Machinery
Model   CAIG1620
Power supply 380V 50Hz 3P
Total power   16KW
Process glass scale Max glass sheet 1600×2000mm
Min glass sheet 300×450mm
Original glass thickness 3~18mm
IG glass sheet thickness 12-48mm
Insulation thickness 6-24mm
Working speed Washing speed 0-12m/min
Assemble speed 8-48m/min
Dimension L×W×H (mm) 14000×2500×2380
Net weight 5000kg
Note: various model with other processing scal customized available.

Advantages


1, Europe design concept, easy and intelligent operation;
2, World famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale, various models and customization available;
5, Big output capacity, 1,000pcs output in one working day;
6, Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7, Automatic argon air gas filling while glass sheet assembling process;
8, PLC controlling system, touching screen operation;

Flow chart




Sample&Applicaton




Our Services


Our services:

1, machine function introduction and quotation reply within 24hours;

2, facility configuration solution reply within 48hours;

3, industrial design or workshop layout design reply within 3 working days;

4, customization feasibility reply within 3 working days;

5, engineer onsite installation and operation guide;

6, machine operation and maintenance guide service after sales;



Warranty:

1, 12 months’ warranty, free replacement of main spare parts;

2, whole life machine operation and maintenance guide;
