Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control

China Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control supplier
Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control supplier Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control supplier Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control supplier Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control supplier

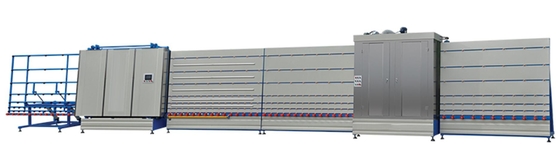

Large Image :  Insulation Window Glass Double Glazing Machinery With Automation Touch Screen Control

Product Details:

Certification: CE ISO
Model Number: CAIG1620

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: by negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15sets per month
Detailed Product Description
Processing Scale: 1600x2000mm Glass Thickness: 3-19mm
IG Glass Thickness: 12-48mm Insulation Thickness: 6-24mm
Washing Speed: 0-12m/min Assembling Speed: 8-48m/min
Operation: Touch Screen Control Function: Insulation Window Glass Double Glazing Processing
Highlight:

double glazing glass machine

,

window glass making machine

Insulation Window Glass Double Glazing Processing Machine with Automation and Touch Screen Control

Introduction



1, Double Glazing Processing Machine adopts the most advanced double glazing manufacture technology and craft in the world.



2, Double Glazing Processing Machine is the standard machine for double glazing producing, which composed of high speed glass washing machine and automatic glass assemble machine.



3, It has all functions of inner-panel assembly, out-panel assembly and stepped glass process. This production line can process same edge glass, stepped glass, and double insulating glass and three layers glass with high efficiency.



4, Double Glazing Processing Machine meeting wide-ranging requirements both high speed production and mass intensive production. It is especially equipped for the production of coated double glazing elements with aluminum spacers.






Details



Parameters:

Parameters of Care Double Glass Machine
Model   CAIG1620
Power supply 380V 50Hz 3P
Total power   16KW
Process glass scale Max glass sheet 1600×2000mm
Min glass sheet 300×450mm
Original glass thickness 3~18mm
IG glass sheet thickness 12-48mm
Insulation thickness 6-24mm
Working speed Washing speed 0-12m/min
Assemble speed 8-48m/min
Dimension L×W×H (mm) 14000×2500×2380
Net weight 5000kg
Note: various model with other processing scal customized available.

Advantages


1, Europe design concept, easy and intelligent operation;
2, World famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale, various models and customization available;
5, Big output capacity, 1,000pcs output in one working day;
6, Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7, Automatic argon air gas filling while glass sheet assembling process;
8, PLC controlling system, touching screen operation;

Flow chart




Sample&Applicaton




Our Services




Packaging & Shipping
