| Function: | Auto High Speed CNC Glass Cutting | Glass Thickness: | 3-19mm |
|---|---|---|---|
| Cutting Precision: | ≤0.2mm/m | Glass Size: | 4200x2800mm |
| Controlling System: | Galil | Software: | OPTIMA |
| Product Name: | Auto High Speed CNC Glass Cutting Machine For Industrial Glass Cut | Servo System: | YASKAWA |
| Cutting Speed: | 160m/min | Labeling: | Customized |
| High Light: | laminated glass cutting machine,glass cutting table machine |
||

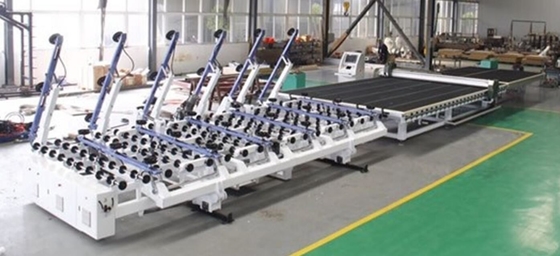

CNC glass cutting machine is included with three equipments:glass loading machine ,glass cutting machine ,and pneumatically glass breaking table.Controlled with a commercially PC,all three machine are worked together automatically in high speed and high precision.
Apply the most advanced abroad two-shaft-three-link type i-shaped design, so as to achieve precision stability under long term use and fast operational;applicble to construction curtain walls, Auto Windshield,crafts,furniture,hollow,solar glass,etc.,or set cutting linear or special-shaped glass.
| Model | Max. glass size | Thickness | Dimensions (L*W*H) | Max. speed | Cutting Accuracy |
| CNC-1915 | 1500*1200mm | 2~19mm | 2480*2240*1275mm | 150m/min | ≤0.2mm/m |
| CNC-2620 | 2440*1830mm | 2~19mm | 3560*2912*1300mm | 150m/min | ≤±0.2mm/m |
| CNC-3725 | 3660*2440mm | 3~19mm | 4880*3412*1300mm | 160m/min | ≤±0.2mm/m |
| CNC-4028 | 4000*2800mm | 3~19mm | 5320*3100*1300mm | 160m/min | ≤±0.2mm/m |
| CNC-5033 | 5000*3300mm | 3~19mm | 6150*4212*1300mm | 160m/min | ≤±0.2mm/m |
| CNC-6033 | 6000*3300mm | 3~19mm | 7150*4212*1300mm | 160m/min | ≤±0.2mm/m |
Details
1. USA Galil controlling system
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimazation software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass
