Payment & Shipping Terms:

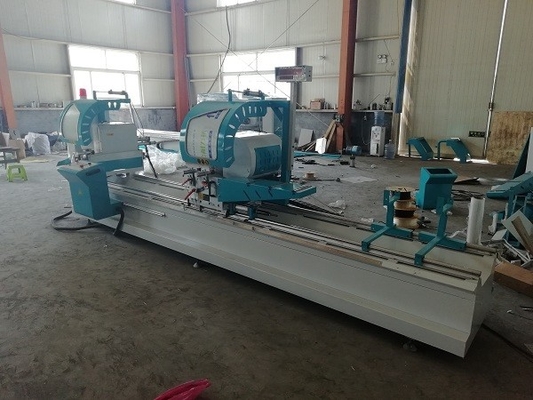

|Function:||Double Mitre Cut Sawing Machine||Rotating Rate:||2800r/min|
|Blade Size:||D=450mm||Cutting Scale:||100x200mm|
|Cutting Length:||400-3700mm||Cutting Angle:||45, -45, 90 Degree|
|Input Power:||3.55Kw||Product:||Aluminum Window Machine Digital Display Double Mitre Cut Sawing Machine|
aluminium profile cutting machine,
aluminium windows cutting machine
1. Hydraulic feeding systems ensure precise and stable feeding.
2. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
3. Carbide saw blade is of accurate processing and high efficiency.
4. Two heads can work together or single, when together work, one time can cut off the required length and angle
5. For cutting Aluminum profile.
6. With digital display for showing exacting cutting position. Friendly using.
7. The feeding system adopts imported linear guide pair, with high accuracy and stability.
8. Auto 22.5°,45°and 90°cutting change
9. Imported linear guiding pair ensured steady processing accuracy.
10. Saw blade rotates smoothly due to high accuracy spindle.
|Working parameters||Saw size||D=450mm d=30mm|
|Cutting scale||HxWxL (mm)||100x200x(400-3700)|
1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;
2, Saw blade rotate smoothly due to high accuracy main spindle;
3, The interface adopt the color touching display,which is briefness and intuitionistic;
4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;
5, 45°and 90°cutting is available;
Contact Person: sales
