|Function:||Glass Vacuum Lifting||Max Lifting Height:||Any Height|
|Max Lifting Weight:||800kg||Sucker Number:||8pcs|
|Vacuum Pressure:||>0.5bar||Turning Angle:||0-90degree|
|Rotating Angle:||360degree||Safety Guarantee System:||20min Working Without Pressure|
|Product:||Glass Vacuum Lifter Manufacturers Vacuum Lifting Device||Drive By:||Vacuum Pump|
glass vacuum lifter,
glass lifting equipment
|Parameters of Care glass vacuum lifter|
|Min structure size||725x1030mm|
|Max structure size||1130x1810mm|
Note: various lifting capacity and power supply available.

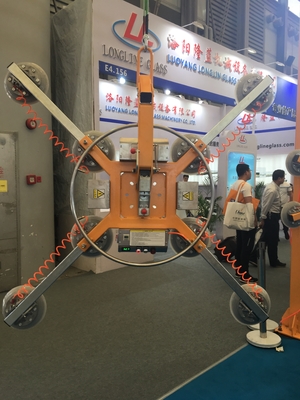

Adjustable manual vacuum lifter is a glass handling equipment with flexible structure and simple operation. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand, dispensed with electricity, safe and reliable. It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises.
1. The vacuum glass lifter is for handling the glass sheet.
2. 12VDC Power supply.
3. Max. carrying capacity up to 800kg.
4. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
5. Stable performance, Easy to maintain, Efficient, safe, quick, easy.
6. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
7. The suction pad can be adjustablem, can be turned off and open individuallly.
8. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
9. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the workpiece not falling down for 5 minutes. Won’t bring about equipment damaged, etc Safe accidents.(EU CE standard for 5 minutes);
