| Function: | Lamination Glass Cutting | Glass Thickness: | 3-10mm |
|---|---|---|---|
| Cutting Lamination: | 0.38mm—1.52mm | Glass Size: | 3600x2600mm |

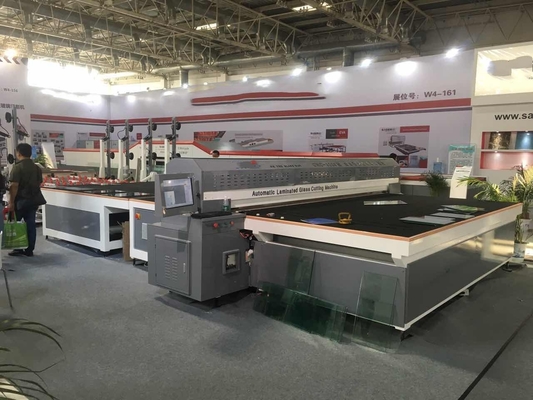

| Product Name: | CNC Laminated Glass Cutting Machine For Lamination Glass Cutting | Cutting Speed: | 100m/min |
| High Light: | automatic glass cutting machine,glass cutting table machine |
||
Major function:
1, optimize layout
2, automatic stripping
3, production database
4, high-speed quartz tube heating
5, belt conveyor
6, Chinese and English interface
Basic performance:
1, Equipment size:7000*4780*1450(mm)
2, Cutting the maximum length:3500mm
3, Cuting the minimum length:250mm
4, Monolithic glass thickness:3—10mm
5, The thickness of laminated glass:0.38mm—1.52mm
6, Cutting speed:100m/min
7, Glass positioning: mechanical positioning/photoelectric positioning
8, Work table height:900±50mm
Install power
1, Total power:15KW
2, Install power:380V/50HZ
(Can be customized according to user requirements)
3, Minimum air pressure:0.8MPa
Working glass precision
1, Positioning accuracy:±0.25mm
2, Straight line cutting accuracy:±0.30mm
3, Parallel precision:0.20mm
4, Diagonal accuracy(Area less than 2m2): 0.5mm
Appliance configuration
1 . GALIL Move controller
2 . Japan Fuji servo motor Fuji driver
3 . SMC Precision pneumatic controller
4. Delta inverter
5. Panasonic fiber amplifier
6. OMRON switching power supply
7. Low voltage component Schneider
