Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine

China Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine supplier
Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine supplier Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine supplier Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine supplier

Large Image :  Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine

Product Details:

Certification: CE ISO
Model Number: LXF3-100x300

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 20 days
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Function: PVC UPVC Window Lock Hole Milling Milling Size: 100x300mm
Input Power: 1.85KW Product: Fast Speed PVC UPVC Window Machine For Lock Hole Milling
Profile Size: 100x120mm Ratating Rate: 12000r/min
High Light:

upvc window welding machine

,

upvc window making machine



Highly Speed Pvc Upvc Machine For Door Profile Lock Hole Milling Machine







Product description




Used for copyroutering processing various holes, grooves and water slots on aluminium windows and doors. High precision copy routing, easy operation,two hand operation. Changeable template for different copy routing.



Power

1.85kw

Voltage

380V/50HZ

Air pressure

0.6-0.8MPa

Rotation rate

12000r/min

Profile size

120x100mm(WxH)

Milling range

100x300mm



Main Features



1. The lock hole drill system opposite the operator, easy operation.
2. Hydro-pneumatic actuator cylinder feeding device of the drill system to reduce labor intensity.
3.Auto milling handle hole, Euro groove slot and various hole or slot milling for processing the PVC window profile.
4. Horizontal triple drill and vertical copy router with special cutout working table to realize one time finishing.
5.Large useful scope, high efficiency and convenient operation achieve the contious processing and safe operation
6.Simple model adjustment and replacement, wide adaptation,high efficiency.

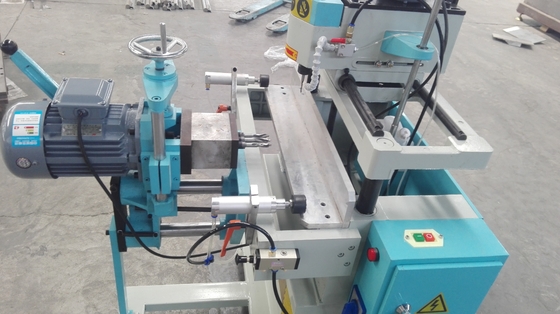

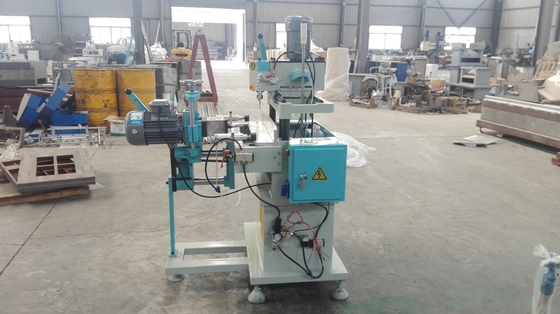

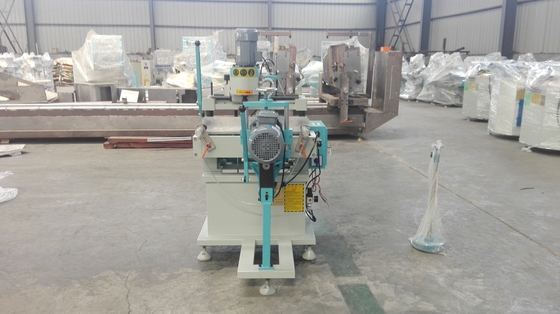

Product Display
