45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

China 45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel supplier
45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel supplier 45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel supplier

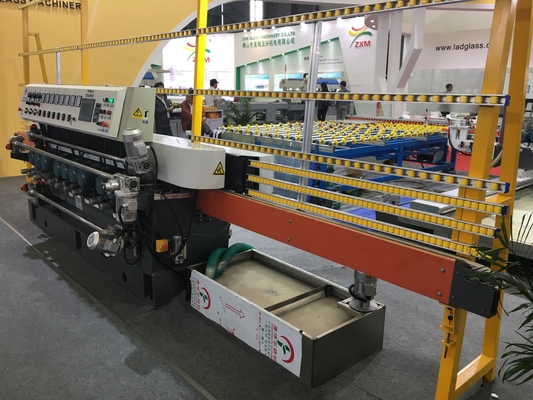

Large Image :  45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Product Details:

Certification: CE ISO
Model Number: CAEP04

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: By negotiation
Packaging Details: 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Delivery Time: 15 days
Supply Ability: 60 sets per month
Detailed Product Description
Function: 45 Degree Glass Edge Grinding Max Edging Size: 3000x3000mm
Min Edging Size: 80x80mm Glass Thickness: 3-25mm
Grinding Tool: Diamond Wheel Grinding Speed: 7m/min
Producut: 45 Degree Glass Edge Grinding Machine With 9 Set Abresive Wheel For Big Glass Edging Grinding Down: 1.5mm
High Light:

glass edge polishing machine

,

glass belt grinding machine

45 Degree Glass Edge Grinding Machine with 9 Set Abresive Wheel for Big Glass Edging



Product Description



The linear glass edge polishing machine is equipped with different grinding wheels,aimed at grinding of linear round edge and linear duckbilled edge of flat glass.The 9 motors machine is mainly used for grinding bottom edges and large edges of flat glass, its grinding motor are very reasonably distributed, 5 pcs of which are used for grinding bottom edges, 4pcs for grinding 45-degree sharp edges, it can be used for precisely grinding flat bottom edges and 45-degree sharp edges of glass. The machine has highly practical, simply operation, it is suitable for professional furniture, doors, windows, kitchen, craft, construction glass grinding.



Paramenters



Overal dimension 7000x1020x2350mm
Working table height 750mm
Voltage 380V/50Hz
Power 19.45KW
Weight 3000kg
Wheel number nine
Grinding down height 1.5mm
Parallel tolerance ±0.2mm/m
Diagonal tolerance ±0.3mm/m
Speed 0.5-7.0m/min
Max glass size 3000x3000mm
Min glass size 80x80mm
Min glass thickness 3mm
Max glass thickness 25mm
Edging angle 45°

45 Degree Linear Glass Edging Machine With 9 Set Abrasive Diamond Wheel

Function



1. Suitable for grinding straight edge of different size and thickness flat glass.

2. The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.

3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission.

4. Adjust front rail to match different glass thickness.

5. The machine is equipped with automatic clamping system and voltage stabilizing system.

6. It is a necessary tool with high precision, high efficiency and easy operation in glass processing industry.



Product flow





Product Application
